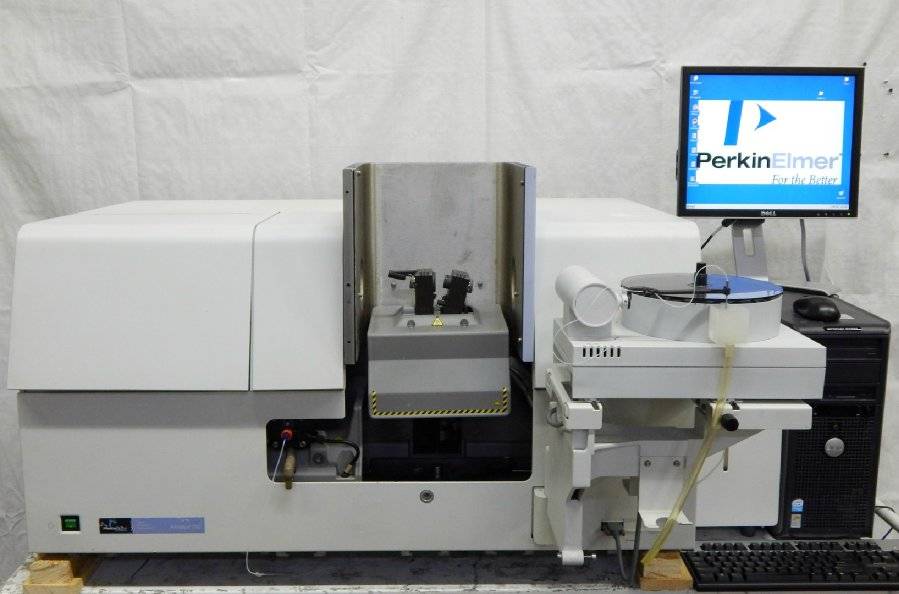

MODEL :AAnalyst 700 AAS
BURNER-ATOMIZER: Adjustable titanium
OTHER INFORMATION (STAINING POSTS): Auto flame/furnace
FORMAT (WAVELENGTH, nm) : 1 channel, real-time
MONOCHROMATOR: Littrow with 1,800
Focal length, mm (DIMENSIONS (HXWXD), MAIN) 267
Wavelength:Range, nm (DETECTOR) 189-870
RESOLUTION:settings, nm (Resolution) 0.2,0.7,2
Scattering,nm/mm : 1.6
DETECTION LIMITS,ppb
Flame photometer
Ca (DETECTION LIMITS,ppb) : 1
Cu (DETECTION LIMITS,ppb) :1
Fe (DETECTION LIMITS,ppb) : 3
Li (TESTING RANGE, MMOL/L) : 0.5
Mg (BASIC/TIME, min) : 1
Graphite furnace
As (DETECTION LIMITS,ppb) : 0.05
Cu (DETECTION LIMITS,ppb) : 0.01
Ni (DETECTION LIMITS,ppb) : 0.07
Pb (DETECTION LIMITS,ppb) : 0.05
Se (DETECTION LIMITS,ppb) : 0.05
DISPLAYED INFORMATION (DETECTION LIMITS,ppb): Multiwindow displayabsorbance, concentration, emission, SD, RSD, curves, peaks, operating conditions, error messages
Working curve (DETECTION LIMITS,ppb): Automatic zero with
Memory : Hard and floppy
Integration, sec (DETECTION LIMITS,ppb): 0.1-99
Graphics (DETECTION LIMITS,ppb): High-resolution
PRINTER (EXTERNAL BEAM) : LaserJet or DeskJet
Microcomputer (DETECTION LIMITS,ppb) : Dell and compatible
INTERFACE PROTOCOL (REPORT DISPLAY): IEEE
DIMENSIONS (HXWXD) CM, (IN) (DISPLAY): 65x 110 x 70
WEIGHT, kg (lb) (DISPLAY) : 147(324)
BACKGROUND CORRECT (DETECTION LIMITS,ppb): Deuterium arc for
GAS REGULATORS : Automatic fuel/oxi
Ignition : Automatic
POWER REQUIREMENTS
Vac (GENERATOR) 230
Hz (OPERATING) 50/60
HOLLOW-CATHODE LAMPS (DETECTION LIMITS,ppb): Coded HCL or EDL, automatic 8-lamp cassette
